Aqualimeter (irrigation control) MELIFLOR

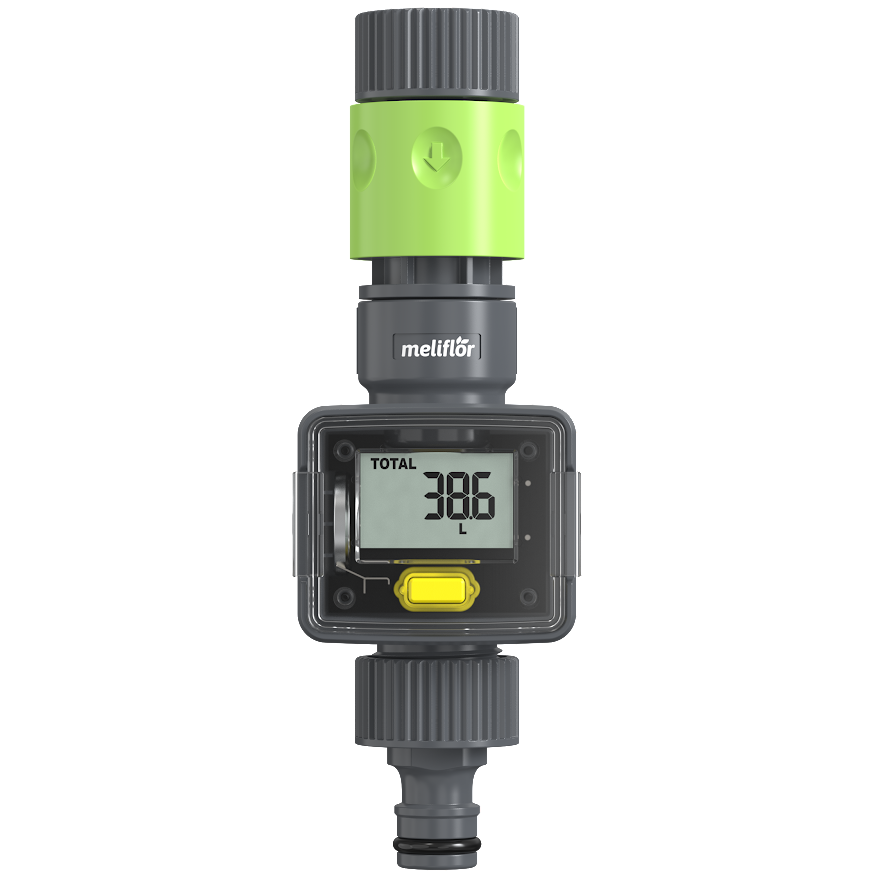

Meliflor Aquameter: Precise Measurement and Control of Water

The Meliflor Aquameter is a highly efficient tool designed for monitoring and controlling water consumption in different applications. It comes pre-assembled and ready to use, with a CR2032 battery included to power its display screen, where you can see the recorded data clearly and precisely.

Featured Features

Durable and Functional Design

Manufactured with high quality materials, the Meliflor Aquameter is resistant to rust and corrosion, allowing it to withstand prolonged contact with fertilizers and other chemicals without deterioration. It has ¾" NH and BSP connectors, both ends protected by a metal grille that acts as a filter, preventing blockages from particles.

Intuitive Operation and Measurement Modes

Its use is extremely simple thanks to clear instructions included with the product. It has a central yellow button that allows you to switch between four measurement modes:

• Flow Mode: Displays the actual water flow in liters or gallons per minute.
• Consumption Mode: Records total consumption, with auto-reset after 30 seconds of inactivity.
• Average Mode: Calculates the average daily consumption of the last 7 days.
• Total Mode: Accumulates total consumption until a manual reset is performed.

Energy Efficiency and Special Features

The device features a "standby" function that saves energy by automatically turning off the unit after one minute without water flow or interaction with the mode button. In addition, it incorporates a low battery indicator and allows easy reset of records by holding the button for two seconds.

Technical specifications

• Water resistance: IPX6
• Flow measurement range: 1 to 40 L/min (0.3 to 10.6 GPM)
• Measurement limit: up to 9,999.9 L or Gal
• Operating pressure: 0.5 bar to 8 bar (7.25 to 116 PSI)
• Maximum flow: 2400 L/H (10.6 GPM)
• Accuracy: ±5%
• Admissible water temperature: 5 to 40ºC

The Meliflor Aquameter is an effective solution for water management and control, ideal for users who need precise monitoring of consumption in different environments. Its robust design, together with its ease of use and its various functionalities, make this device an indispensable tool to improve the efficiency of water use in any facility.
